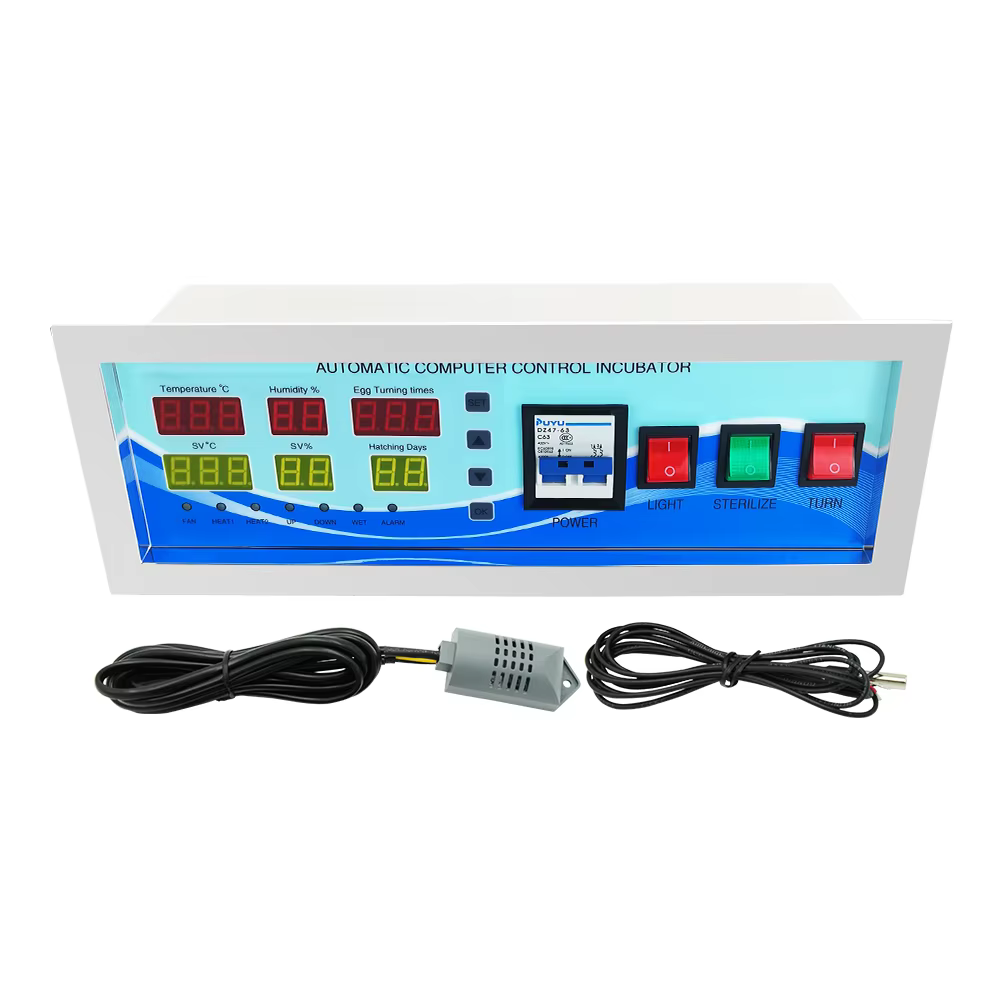

XM-18G automatic control system, temperature and humidity sensor, incubator temperature controller, thermostat

概览

Product Name

XM-18G Incubator Controller

Size/Weight

Weight: 1.3 kg
Size: 36 x 14 x 10 cm

Main Technical Index

1. Temperature display range: 0~40.5°C
2. Temperature measurement accuracy: ±0.1°C
3. Humidity display range: 0~99%RH
4. Control release accuracy: ±3%RH

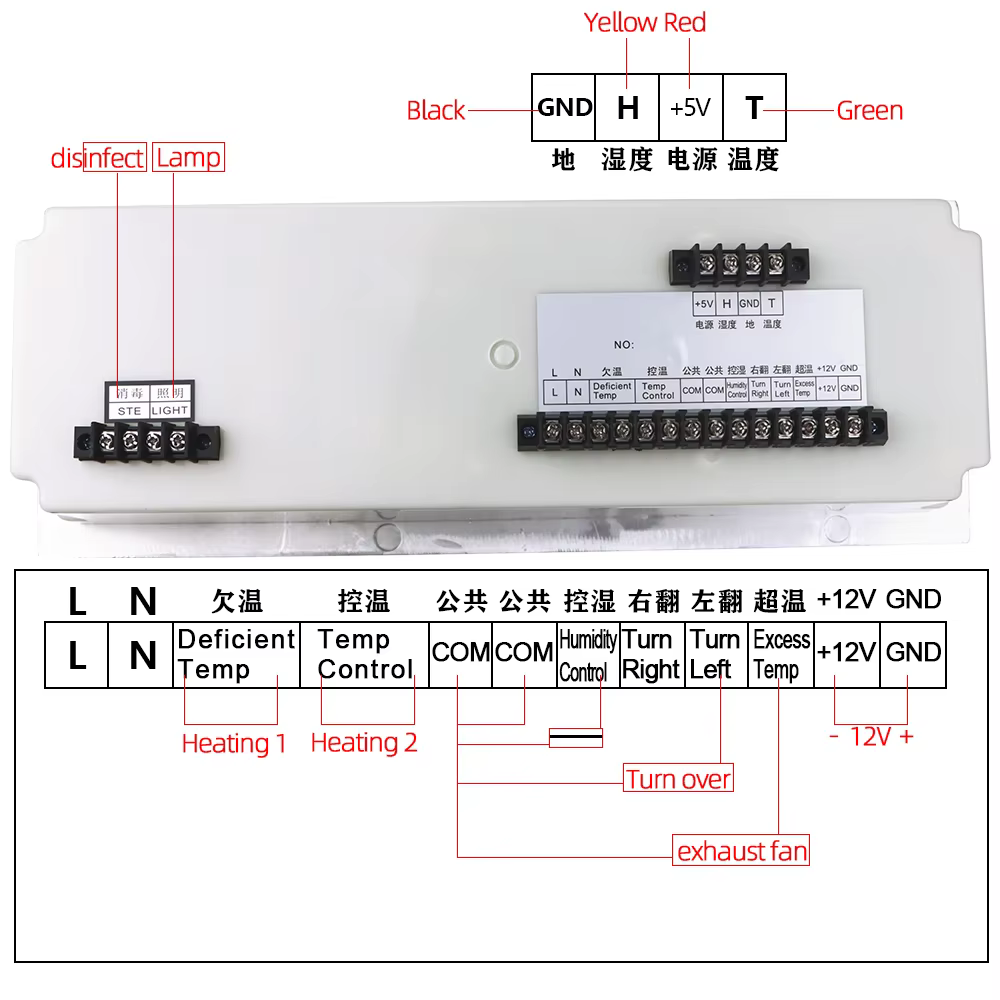

5. Output lines: 6 lines (primary heating, auxiliary heating, exhaust (air exchange), turn left, turn right, moisten)
6. Output current: primary and auxiliary heating 30A, other output 10A
7. Egg rotation time: maximum 999 times
8. Egg rotation cycle: 0~999 minutes (default 90 minutes)
9. Egg rotation period: 0999 seconds (180 seconds default)
   10.Air exchange cycle: 0999 minutes (120 minutes by default)
   11.Air exchange period: 0~999 seconds (default 15 seconds)
   12.Length of measuring line: about 1.5 meters

Box contents:
1 x XM-18G Incubator Controller Thermostat Hygrometer
1 x Temperature Sensor
1 x Humidity Sensor

Working conditions

1. Operating voltage: AC 180V~240V, 50HZ
2. Relative humidity: less than 85%
3. Ambient temperature: -20℃~70℃
