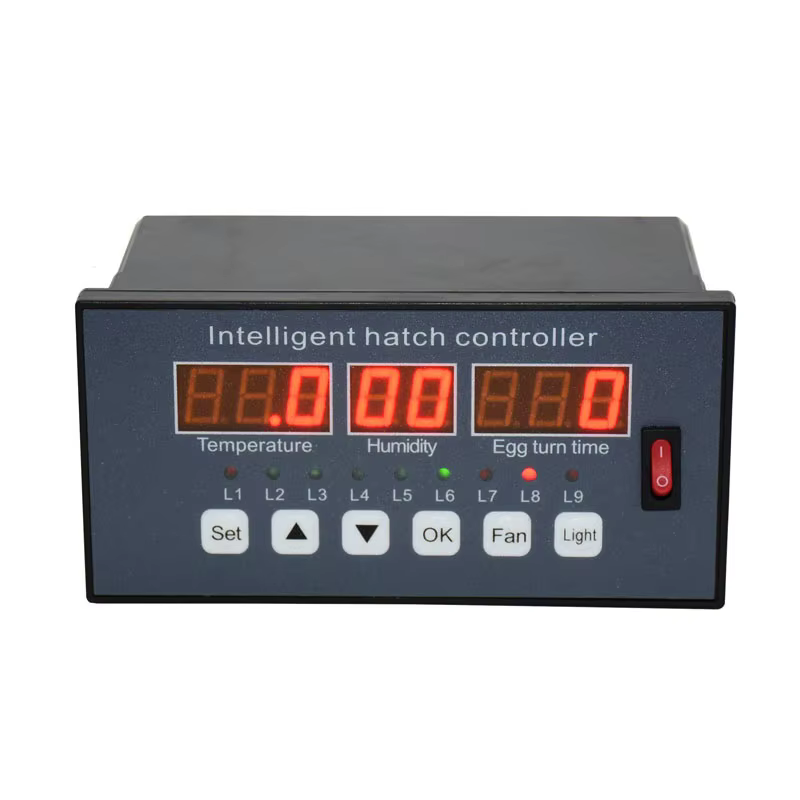

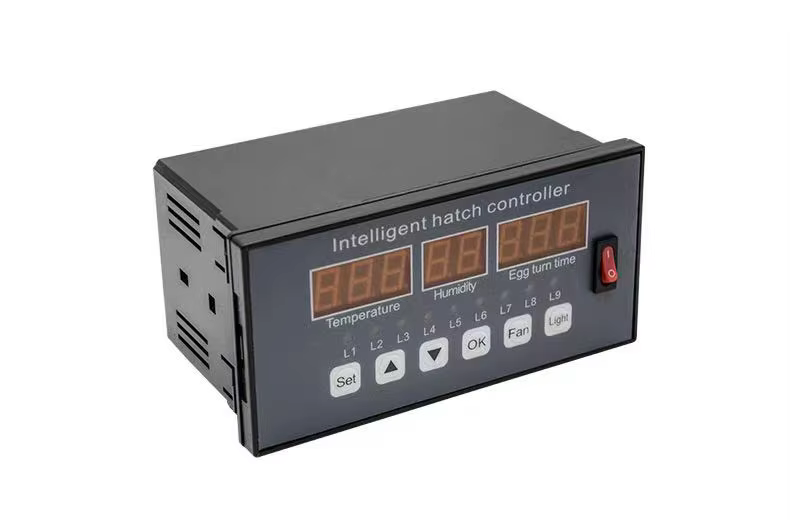

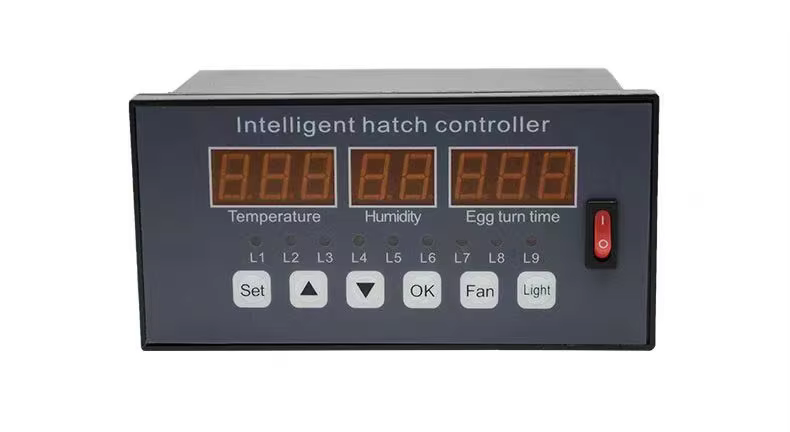

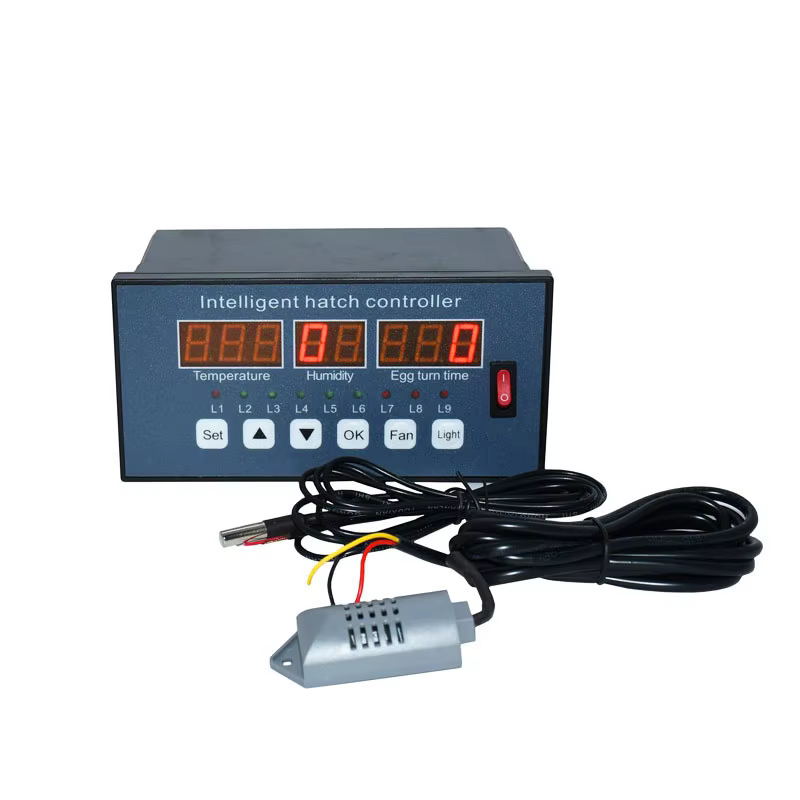

XM-16 Multifunction Egg Incubator Control System Incubator Controller Automatic controller
Intelligent Incubator controller is a fully intelligent PC control system which is designed and developed for the Incubator industry. It adopts the latest micro-electronic technology and new electric parts and high-performance temperature and humidity sensor, and effectively guarantees stability and reliability and reliability of the product performance.
Overview

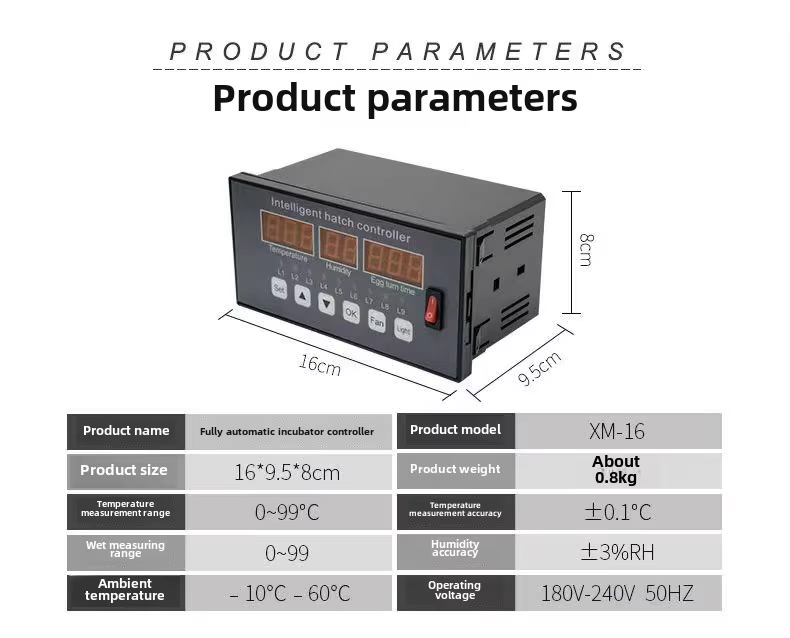

2.Main technical indexes:
1.Temperature display range: 0--99 degrees Celsius
2.Temperature measurement precision: +/- 0.1 degrees Celsius
3.Humidity display range: 0--99% RH
4.Humidity control precision: +/- 3% RH

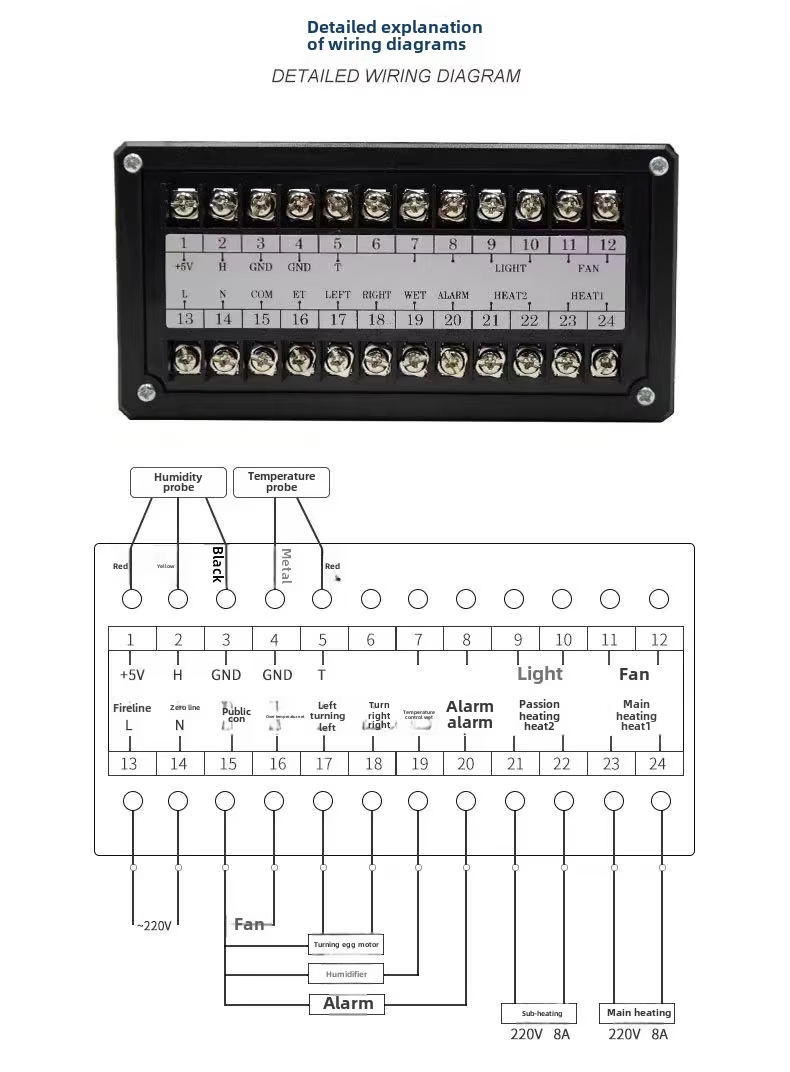

5.Output channels: 9-channel (over temperature, temperature control, low temperature, turn eggs left, turn eggs right, humidity control, alarm fan and light).
6.Output current: 10A for temperature control and low temperature and 1A for others
7.Length of measurement line: About 2 meters
8.Working voltage: AC 180V-240V, 50HZ

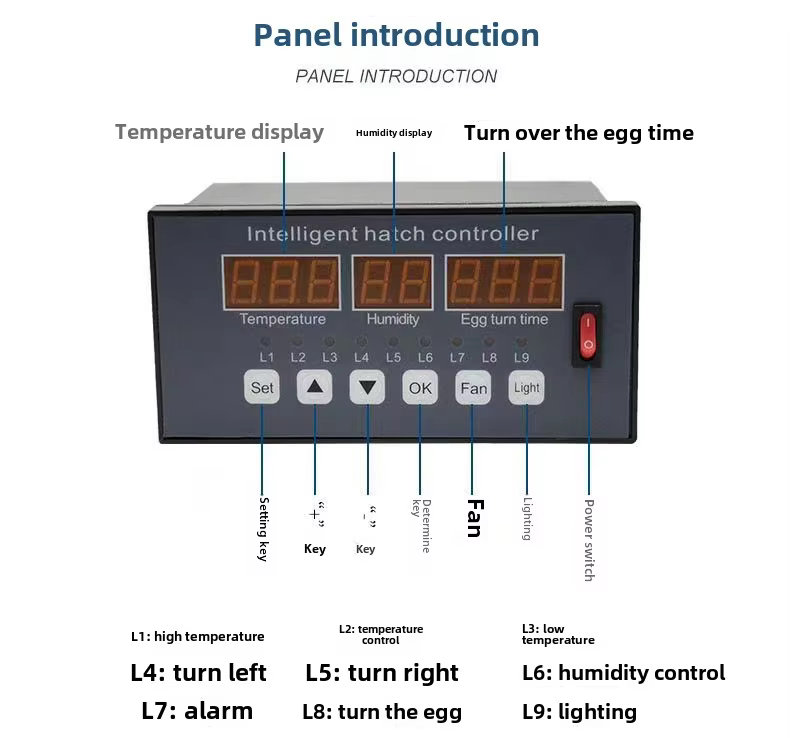

3.Button and parameter setting
L1: High temperature
L2: Temperature control
L3: Under temperature
L4: Turn left
L5: Turn right
L6: Humidity control
L7: Alarm
L8: Fan
L9: Light

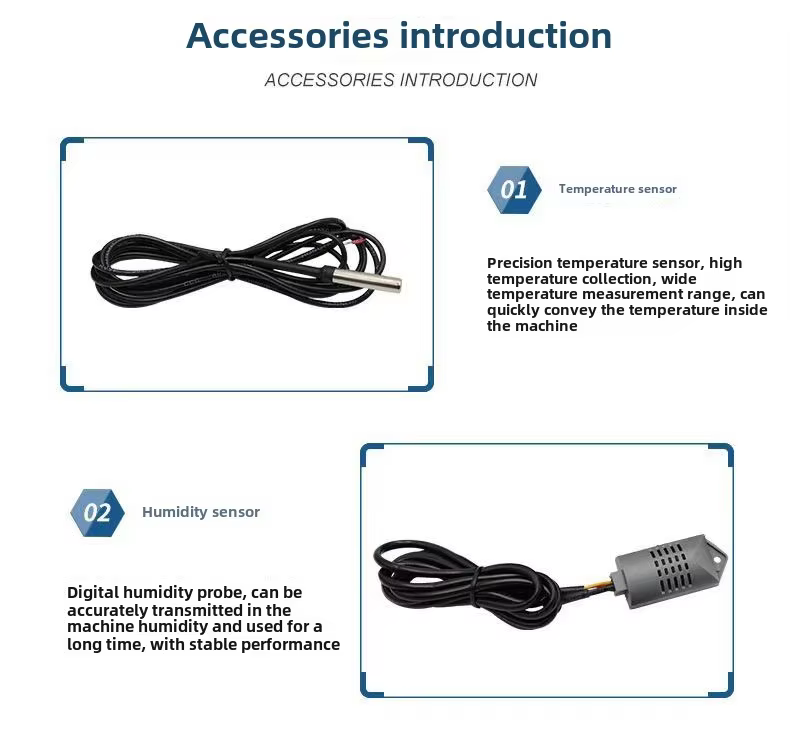

- Accessories: Humidity sensor + temperature probe, instructions in English
